ALL-TERRAIN MOBILE OXYGEN SUPPLY TRUCK SANY BUILT-IN DIESEL GENERATOR DELIVER OXYGEN WHEREVER YOU NEED

Products

1

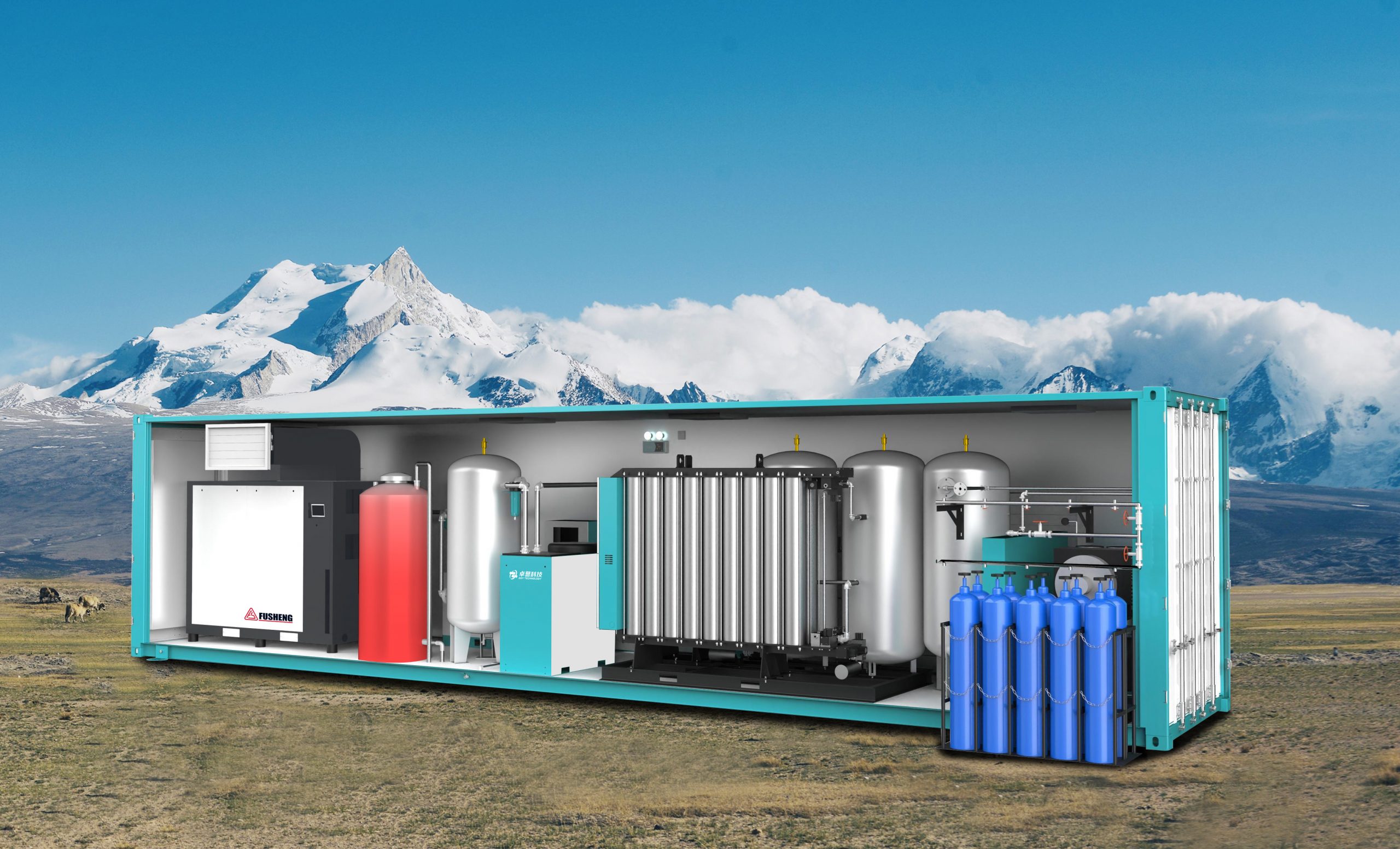

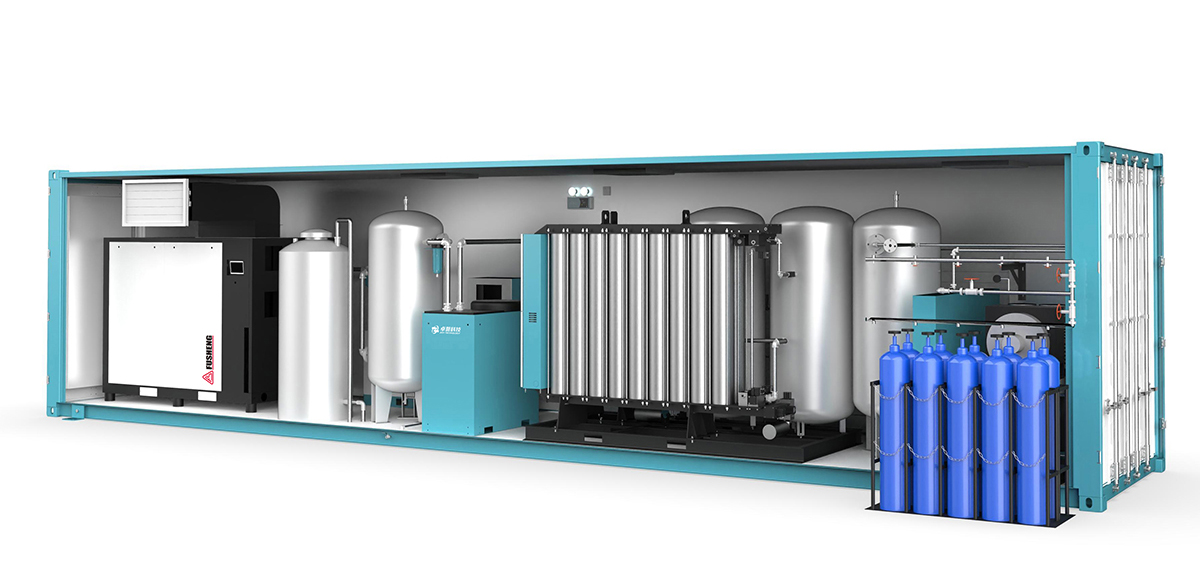

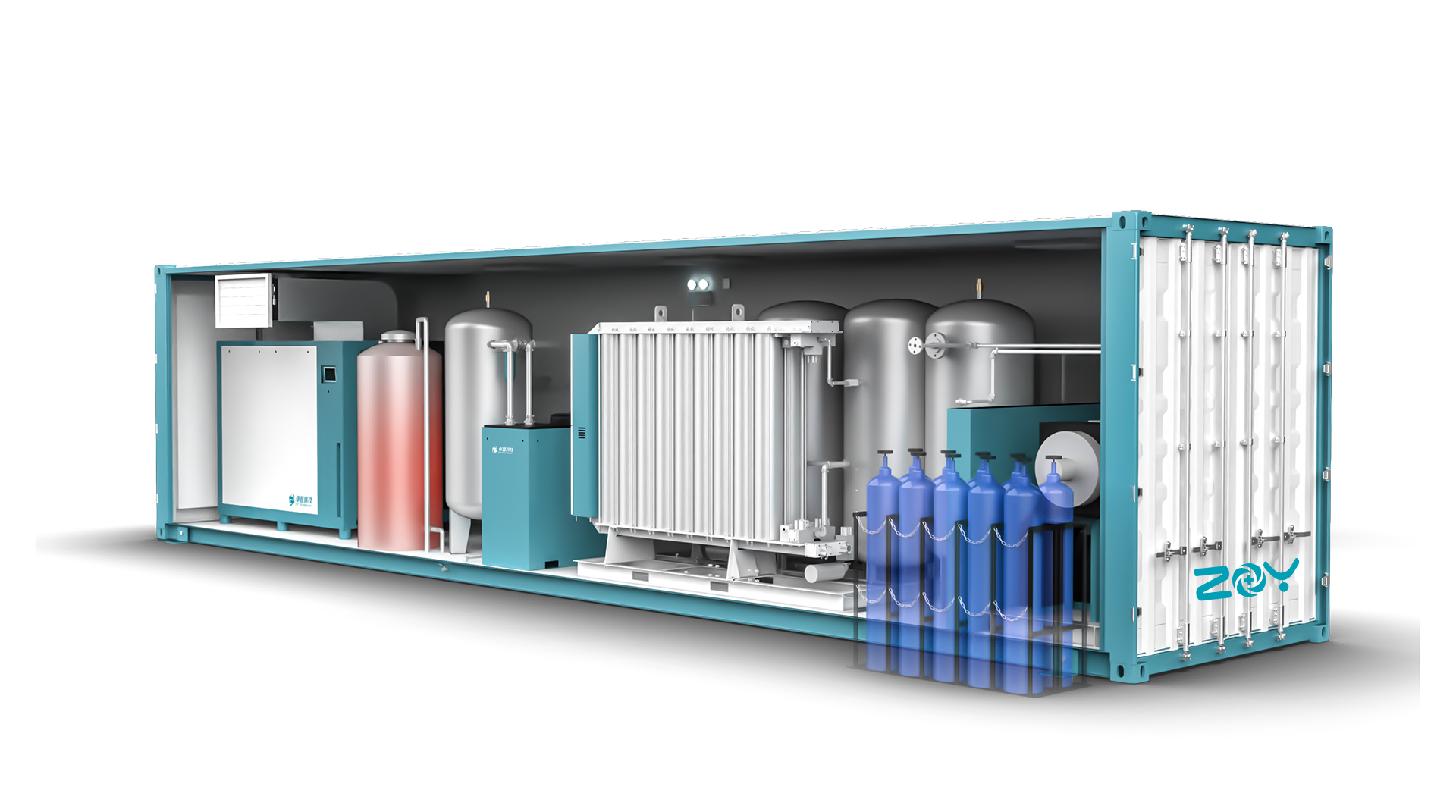

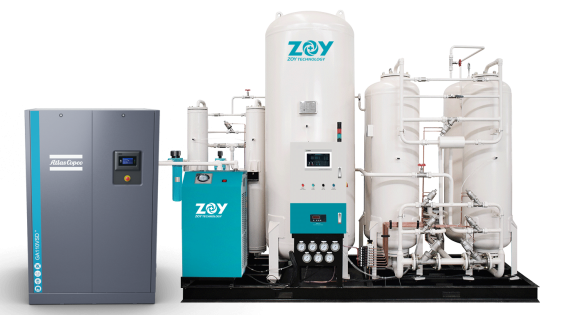

ZOY®Container Package PSA Oxygen Generator System

Working voltage: 80VAC/440VAC 3phase
Working sea level: 0-4000meters
Ambient temperature: 0°C~45°C,80~95% RH
Feed air pressure: 7-8Bar
Air filtration grade: 0.001µm
Oxygen outlet pressure: 2-5Bar,150-200Bar with Booster
Compressed airpressuredew point: -56.2°C~-61°C

Get a Quote Send E-mail
  • Product Introduction
  • Features
  • Specification
  • Application
  • Cases
Inquiry

Product Introduction

FULL PERFORMANCE Oxygen Generator System= Oxygen Generator System + Warm Water + All kinds of Climates

* Turnkey solution, plug and play

* Container package, free of machine room construction

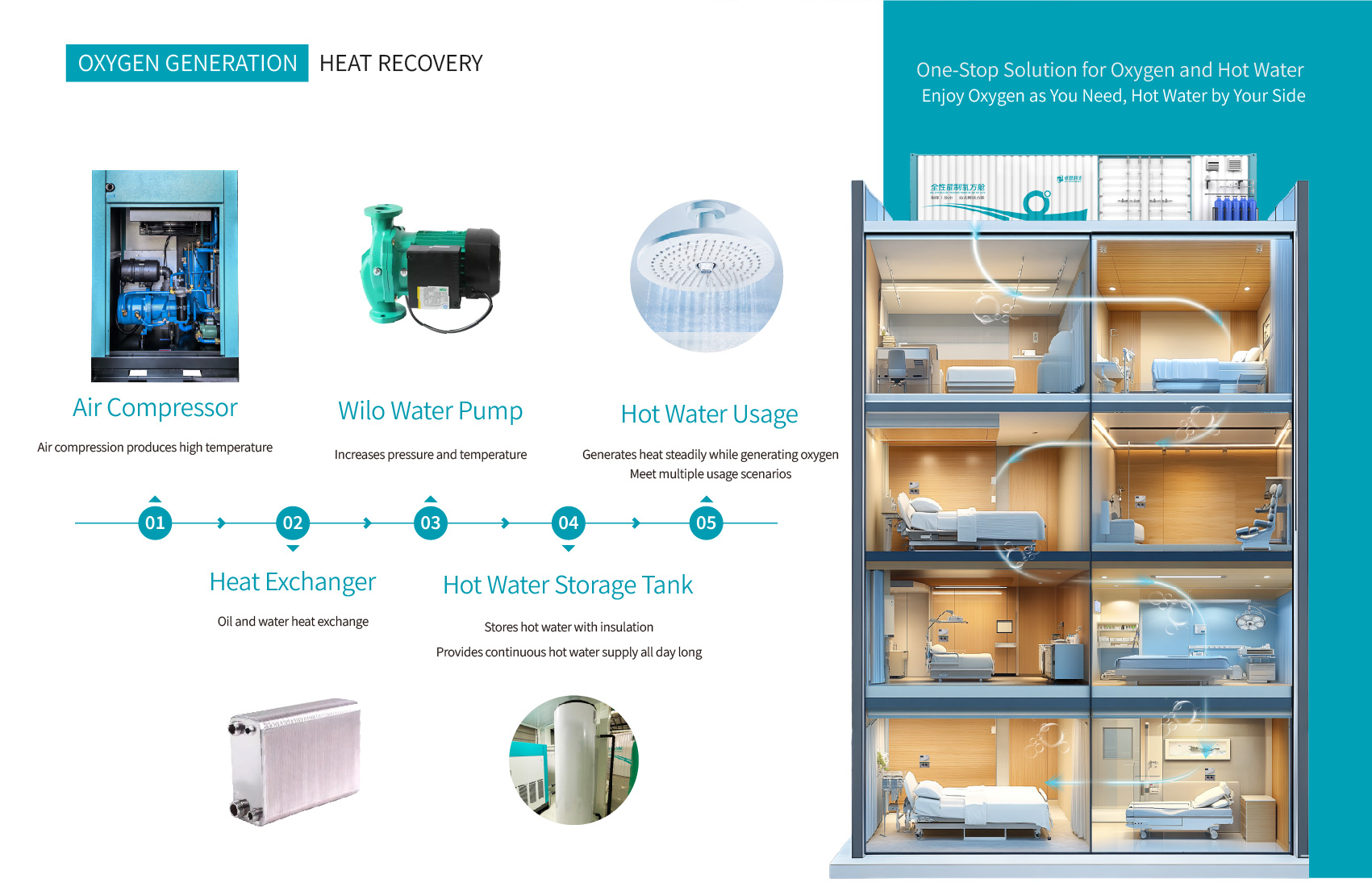

* Heat reuse system, energy saving

* Environment eco-friendly

* Online management system, one button stop, start

* With cylinder filling system, make your own oxygensource

* 24*7hours running, stable and reliable

Features

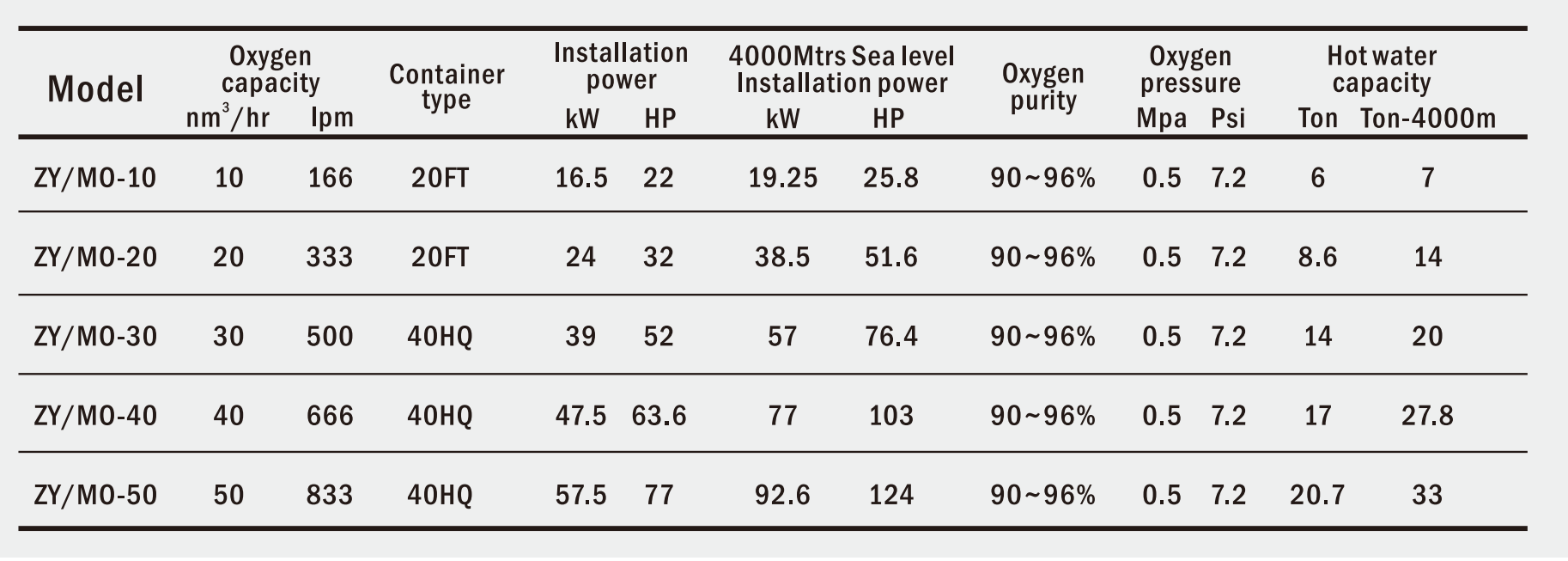

Model 0xygen capacity Container type Installation Power 4000Mtrs Sea level Installation power 0xygen purity 0xygen pressure Hot water Capacity
nm³ /hr lpm kW HP kW HP Mpa Psi Ton Ton-4000m
ZY/MO-10 10 166 20GP 16.5 22 19.25 25.8  90-96% 0.5 72 6 7
ZY/MO-20 20 333 20GP 24 32 38.5 51.6 90-96%  0.5  72 8.6 14
ZY/MO-30 30 500 40HQ 39 52 57 76.4 90-96%  0.5  72 14 20
ZY/MO-40 40 666 40HQ 47.5 63.6 77 103 90-96%  0.5  72 17 27.8
ZY/MO-50 50 833 40HQ 57.5 77 92.5 124 90-96%  0.5  72 20.7 33





Specification

Application

Cases

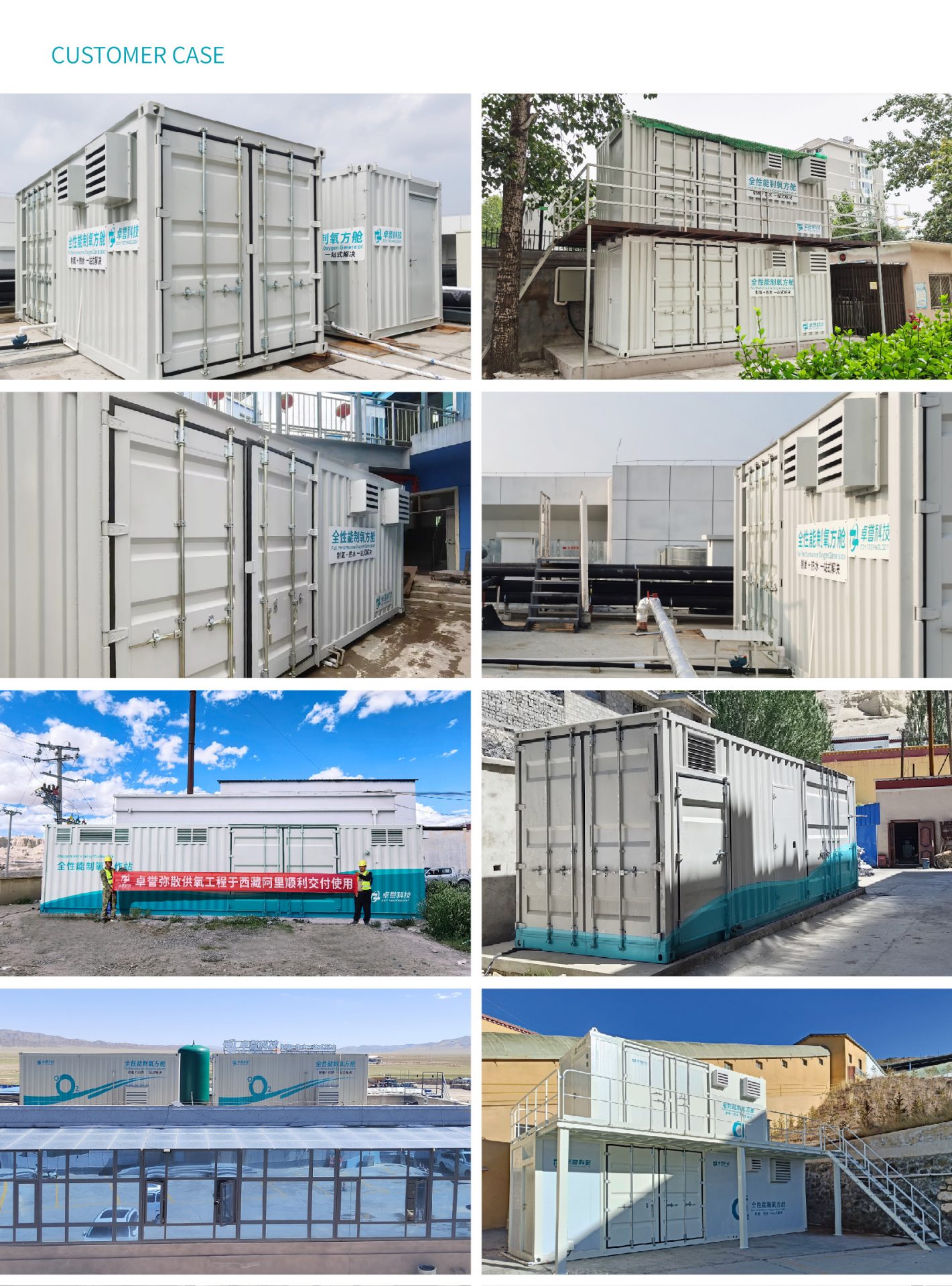

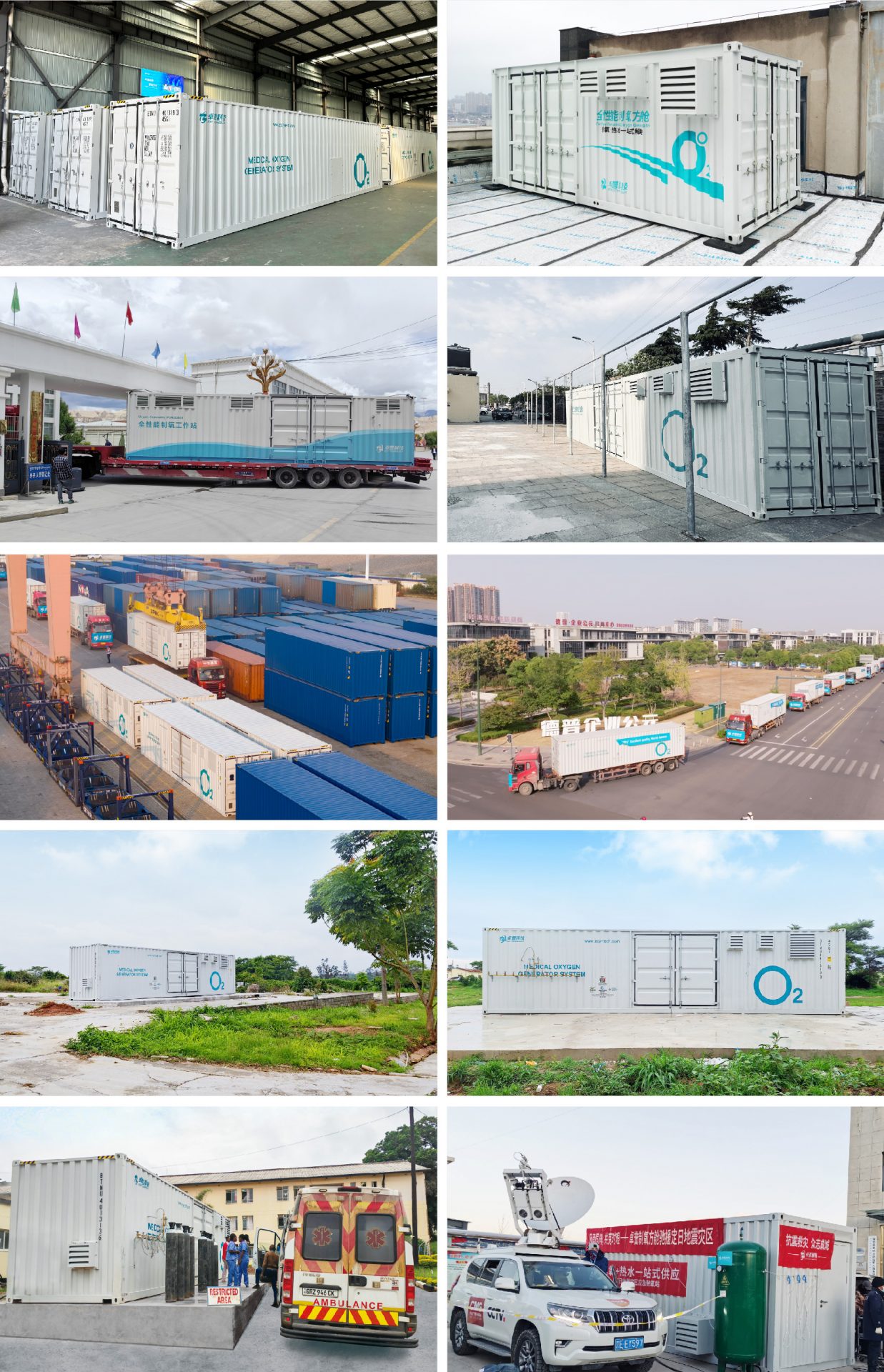

Project Case
