ZOY®Oxygen Cylinder Filling System

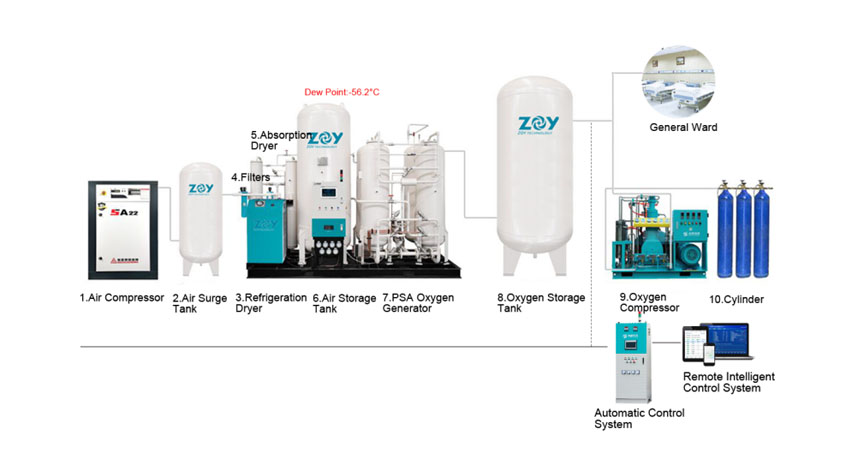

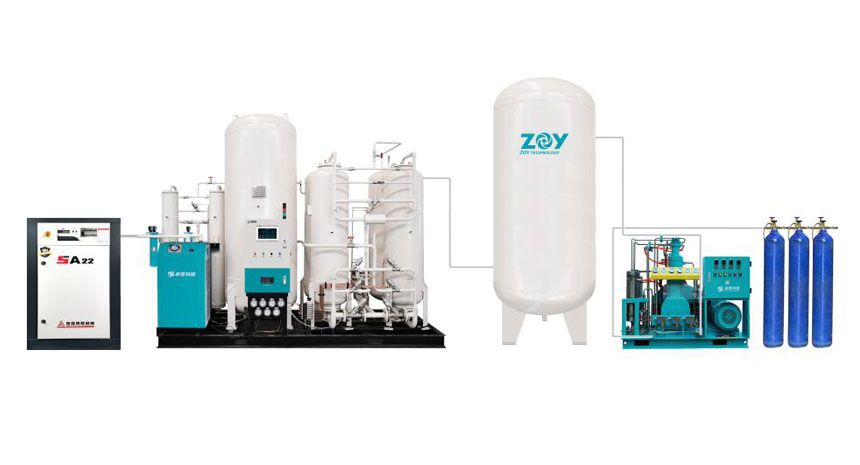

ZOY Oxygen Cylinder Filling System help users to fill their own oxygen cylinders with 15Mpa high pressure(about 2200psig). When there is spare oxygen capacity you can fill in cylinders for backup or other supply. With the cylinder filling system, you can get rid of troubling of unreliable oxygen supply and or high prices of oxygen.

Get a Quote Send E-mail

Specification
Features

Inquiry

Specification

Model	Capacity Flow (Nm³/h)	Input Pressure (MPa)	Outlet Pressure (MPa)	Rated Power (KW)	Inlet Size	Inlet Size	Measurement (mm)
ZYOF-5	5	0.4	15	4	DN20	M14X1.5	1080X820X850
ZYOF-8	8	0.4	15	5.5	DN20	M14X1.5	1080X820X850
ZYOF-10	10	0.4	15	7.5	DN20	M14X1.5	1080X870X850
ZYOF-12	12	0.4	15	7.5	DN20	M14X1.5	1080X870X850
ZYOF-15	15	0.4	15	11	DN20	M14X1.5	1150X970X850
ZYOF-20	20	0.4	15	15	DN20	M14X1.5	1150X970X850

Model	Input Pressure	Outlet Pressure	Capacity Flow	Rated Power	Rated Voltage	Inlet Size	Outlet Size	Measurement
Model	barg	barg	NM3/h	KW	VAC			mm
ZYOF-15/4-150	3-4	150	15	5.5/11	380	DN25	M16*1.5	1550X910X1355
ZYOF-16/4-150	3-4	150	16	5.5/11	380	DN25	M16*1.5	1550X910X1355
ZYOF-20/4-150	3-4	150	20	11	380	DN25	M16*1.5	1550X910X1355
ZYOF-25/4-150	3-4	150	25	11	380	DN25	M16*1.5	1550X910X1355
ZYOF-30/4-150	3-4	150	30	11	380	DN25	M16*1.5	1550X910X1355
ZYOF-35/4-150	3-4	150	35	11	380	DN25	M16*1.5	1550X910X1355
ZYOF-40/4-150	3-4	150	40	15	380	DN25	M16*1.5	1550X910X1355
ZYOF-45/3-150	3-4	150	45	15	380	DN25	M16*1.5	1550X910X1355
ZYOF-50/4-150	3-4	150	50	15	380	DN25	M16*1.5	1550X910X1355
ZYOF-50/2-150	3-4	150	50	18.5	380	DN25	M16*1.5	1550X910X1355
ZYOF-55/4-150	3-4	150	55	18.5	380	DN25	M16*1.5	1550X910X1355
ZYOF-60/4-150	3-4	150	60	18.5	380	DN25	M16*1.5	1550X910X1355

Features

◆Completely Oil-Free

◆High Safety

◆Compact Size

◆Light Weight

◆Zero Pollution to Oxygen,ensures oxygen purity
