Medical PSA oxygen generators are widely recognized as a reliable source of 93% ± 3% medical oxygen for hospitals worldwide. Achieving oxygen purity above 99.5%, however, requires overcoming the natural separation challenge caused by argon and oxygen similarity in air separation.

Through advanced multi-stage separation processes, optimized adsorption technologies, and customized purification configurations, high-purity oxygen systems can be engineered for specialized applications requiring ultra-high oxygen concentration, including selected medical, aerospace, defense, and industrial scenarios.

The key engineering question is not whether higher purity oxygen can be produced, but whether the additional purity level creates real operational value for the intended application.

Engineering Reality: Different Oxygen Purity Levels for Different Applications

Dimension	93% Medical Oxygen (93% ± 3%)	99.5% High-Purity Oxygen
Separation Technology	Single-stage PSA using Zeolite Molecular Sieves (ZMS)	Advanced multi-stage separation processes combined with specialized purification technologies
Pharmacopoeia & Standards	Recognized by USP, Ph. Eur. (Monograph 2455), and WHO	Recognized by Ph. Eur. (Monograph 0417) & military/specialty specs
Primary Physical Composition	~93% O₂ with remaining gases mainly consisting of argon and nitrogen	≥ 99.5% O₂, < 0.5% residual gases (Ar/N₂)
Core Target Applications	Hospital central oxygen pipeline systems, ICU, emergency care, general wards, and many medical oxygen applications	Specialized aerospace, defense, laboratory, and industrial applications where ultra-high oxygen concentration is required

Why 93% Medical Oxygen Is the Global Standard for PSA Systems

93% oxygen is an internationally recognized medical standard explicitly defined by major global pharmacopoeias (USP, European Pharmacopoeia, and WHO guidelines).

Atmospheric Equilibrium:

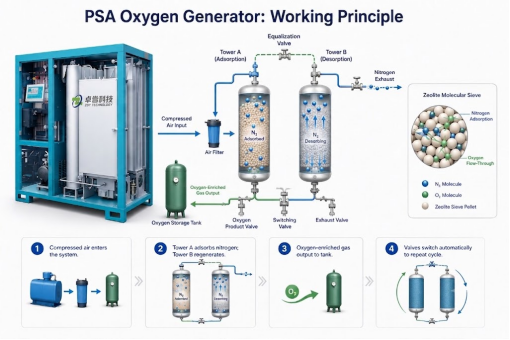

Ambient air naturally contains 78.08% nitrogen, 20.95% oxygen, and 0.93% argon. Standard single-stage PSA molecular sieves selectively adsorb nitrogen, concentrating oxygen and argon together. This yields a steady, naturally balanced gas output of 93% ± 3% oxygen.

Importantly, 93% medical oxygen is not considered a lower-grade oxygen source. It is a specifically defined medical oxygen category designed around clinical effectiveness, safety, availability, and cost efficiency.

Clinical Suitability:

93% medical oxygen fully satisfies the physiological requirements for general anesthesia, ICU ventilation, emergency resuscitation, hyperbaric oxygen therapy, and routine ward supply.

Operational Stability:

For standard hospital central oxygen supply systems, maintaining continuous, uninterrupted gas flow at 93% purity with strict purity limits on CO, CO₂, and moisture is the benchmark for long-term operational safety.

Overcoming the Argon Separation Challenge: Engineering Pathways Toward Higher-Purity Oxygen

Producing oxygen above conventional PSA purity levels requires addressing one of the fundamental challenges in air separation: oxygen and argon have very similar physical properties, making their separation significantly more complex than nitrogen removal.

ZOY Technology develops customized high-purity oxygen solutions by combining advanced PSA optimization, multi-stage separation technologies, and application-specific purification processes.

• Multi-Stage Separation & Purification: ZOY integrates optimized adsorption stages and advanced purification modules designed to further reduce residual gases after primary nitrogen separation.
• Precision Process Control: Utilizing intelligent PLC/DCS systems with dynamic pressure balancing, ZOY helps maintain stable oxygen purity under changing operating conditions.
• Ruggedized System Integration: Designed for demanding operating environments, ZOY’s high-purity systems integrate high-efficiency air pretreatment, heavy-duty oil-free boosters, and specialized gas polishers inside compact footprints.

Specialized Application Scenarios for ZOY 99.5% High-Purity Systems

Leveraging advanced multi-stage separation technology, ZOY delivers 99.5% ultra-high purity oxygen solutions across three high-demand sectors:

1. Military Defense & Aviation Support (OBOGS & Field Operations)

• High-Altitude Physiology: Fighter pilots and high-altitude troops require ultra-high partial pressure oxygen to prevent hypoxia under extreme G-force and low ambient pressure.
• Mobile Field Shelters & Naval Hospital Ships: Compact, shock-resistant 99.5% containerized PSA units provide self-sufficient oxygen generation for deep-sea or battlefield medical deployments without external cryogenic logistics.

2. Extreme Trauma & Specialized Medical Applications

• High-Pressure Resuscitation: Specialized surgical environments and deep-sea hyperbaric emergency shelters require maximum oxygen partial pressure for rapid blood oxygenation during severe trauma treatment.
• Multi-Gas Analytical & Defense Research: Military medical research labs and field toxicological response units rely on 99.5% oxygen for continuous, high-accuracy testing and specialized breathing mixtures.

3. High-Precision Industrial & High-Tech Manufacturing

• Laboratory & Laser Processing: Semiconductor fabrication, precision metallurgical cutting, and calibration laboratories where trace amounts of residual argon or nitrogen interfere with process outcomes.

ZOY Technology: Engineering Custom Solutions Across the Purity Spectrum

At ZOY Technology, different applications demand different engineering priorities. Whether a project calls for a standard hospital PSA plant compliant with ISO 7396-1 or an extreme-duty 99.5% high-purity generator for military defense, ZOY delivers tailored, factory-tested solutions built around real-world operating conditions.

• Over 2,000 Global Healthcare Installations: Supplying compliant, cost-effective 93% central oxygen systems worldwide.
• Advanced R&D & Custom Engineering: Delivering 99.5% specialized containerized PSA plants equipped for extreme temperatures, high dust, vibration, and stringent military specifications.

By matching separation physics directly to mission requirements, ZOY Technology helps clients achieve the ideal combination of performance, reliability, and long-term operational value.

Frequently Asked Questions About 99.5% Oxygen Generation

l Can a standard medical PSA oxygen generator produce 99.5% oxygen?

No. Standard medical PSA systems are designed to produce approximately 93% ± 3% oxygen, which is the internationally recognized medical oxygen standard. Producing higher purity oxygen requires additional separation technologies.

l Is 93% oxygen safe for hospitals?

Yes. 93% medical oxygen is globally recognized by major pharmacopoeias and is widely used for hospital oxygen supply systems, including ICU, emergency care, and general medical applications.

l Does higher oxygen purity always mean better performance?

Not necessarily. The optimal oxygen purity depends on application requirements. Higher purity often requires more complex equipment, higher energy consumption, and increased lifecycle costs.

• How do I choose between a 93% and a 99.5% oxygen system for my project?

Selection depends on your technical standards, operating environment, and total lifecycle cost targets. ZOY’s engineering team evaluates your specific application parameters to recommend the most reliable and cost-effective oxygen solution.
