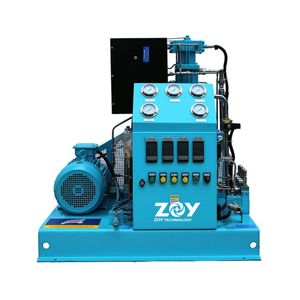

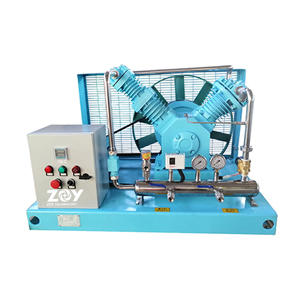

ZOY®Oxygen Compressor

  • High-pressure oxygen booster, all oil-free design, guide ring and piston ring are made of self-lubricating materials, 100% oil-free lubrication, bearing parts are lubricated with high temperature grease, avoid high temperature and high pressure oxygen contact with oil and other flammable and explosive media, safe High performance, small size, light weight, zero pollution to gas during compression, ensuring oxygen purity.

  • Product Intruduction
  • Features of oxygen compressor
  • Specifications
  • Detailed Pictures
Inquiry

Product Intruduction

An oxygen compressor is a compressor that is used to pressurize oxygen and deliver or store it.

There are two uses for medical oxygen compressors. One is that the hospital’s PSA oxygen generator needs to be pressurized to supply various wards and operating rooms, providing 7-10 kg of line pressure.and the other is that PSA oxygen needs to be stored. The high-pressure container is convenient for mobile use,and the storage pressure is generally 100 barg, 150 barg,200 barg,or higher 300 barg pressure.

Features of oxygen compressor

  1. Completely 100% oil free, no oil required (depending on the specific model)
  2. Oxygen for medical PSA oxygen gas source
  3. NO pollution, keep the same purity into the gas
  4. Reliable and high quality,Low maintenance cost, Simple operation
  5. 4000 hours piston ring working life under low pressure conditions, 1500-2000 hours working life under high pressure conditions
  6. According to the customer’s specific working conditions. the compressor is designed for single machine compression,two-stage compression,three-stage compression and four-stage compression
  7. Low noise, average noise below 75dB, can work quietly in the medical field

Specifications

Model Working Medium

Suction pressure    (Mpa,Psig)

Discharge Pressure Motor (kw) Flow rate (Nm3/hr) Voltage Cooling way Weight (kgs)

Dimension(mm)



ZYOC-15/4-150 oxygen 0.3-0.4, 40-60 15,2150 11 15 220V/380V/415V/440V

50/60HZ

Air cooling 780 1500*950*1500
ZYOC-16/4-150 oxygen 0.3-0.4, 40-60 15,2150 11 16 220V/380V/415V/440V

50/60HZ

Air cooling 780 1500*950*1500
ZYOC-20/4-150 oxygen 0.3-0.4, 40-60 15,2150 11 20 220V/380V/415V/440V

50/60HZ

Air cooling 780 1500*950*1500
ZYOC-25/4-150 oxygen 0.3-0.4, 40-60 15,2150 11 25 220V/380V/415V/440V

50/60HZ

Air cooling 960 1500*950*1500
ZYOC-30/4-150 oxygen 0.3-0.4, 40-60 15,2150 11 30 220V/380V/415V/440V

50/60HZ

Air cooling 960 1500*950*1500
ZYOC-35/4-150 oxygen 0.3-0.4, 40-60 15,2150 11 35 220V/380V/415V/440V

50/60HZ

Air cooling 960 1500*950*1500
ZYOC-40/4-150 oxygen 0.3-0.4, 40-60 15,2150 15 40 220V/380V/415V/440V

50/60HZ

Air cooling 1000 1500*950*1500
ZYOC-50/4-150 oxygen 0.3-0.4, 40-60 15,2150 15 50 220V/380V/415V/440V

50/60HZ

Air cooling 1000 1500*950*1500
ZYOC-60/4-150 oxygen 0.3-0.4, 40-60 15,2150 18.5 60 220V/380V/415V/440V

50/60HZ

Air cooling 1050 1500*950*1500

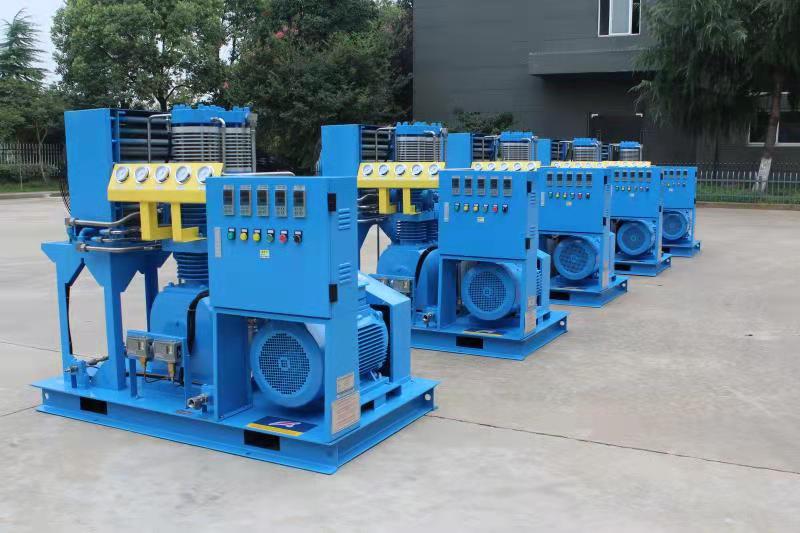

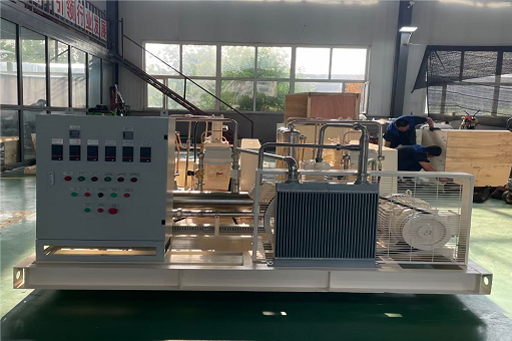

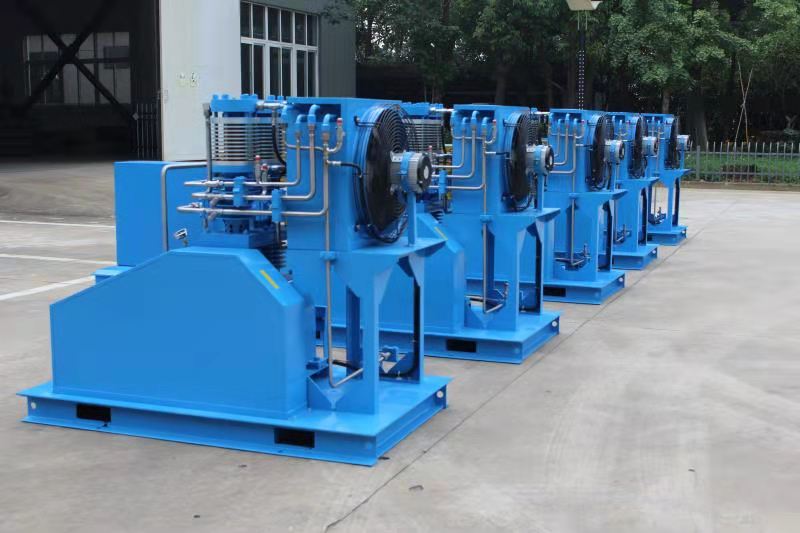

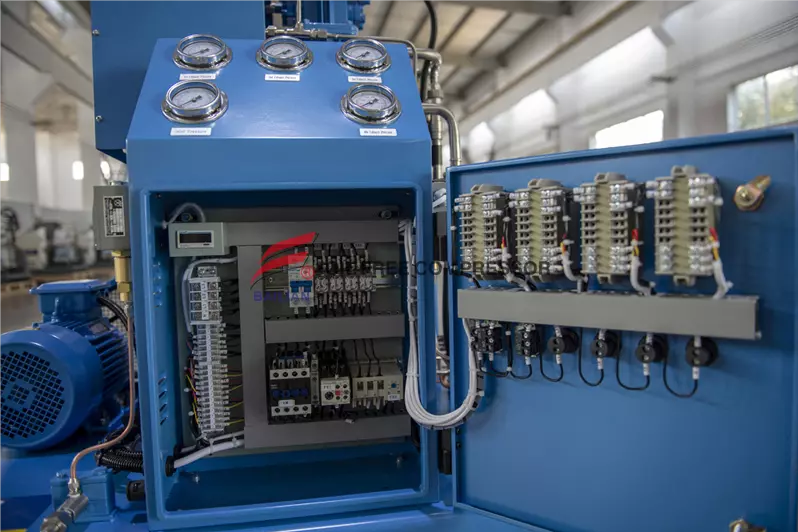

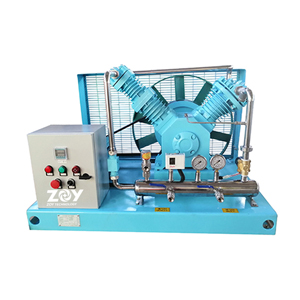

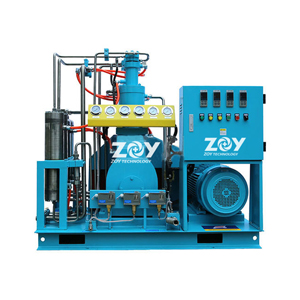

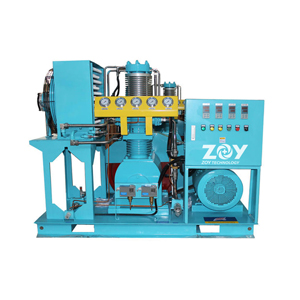

Detailed Pictures

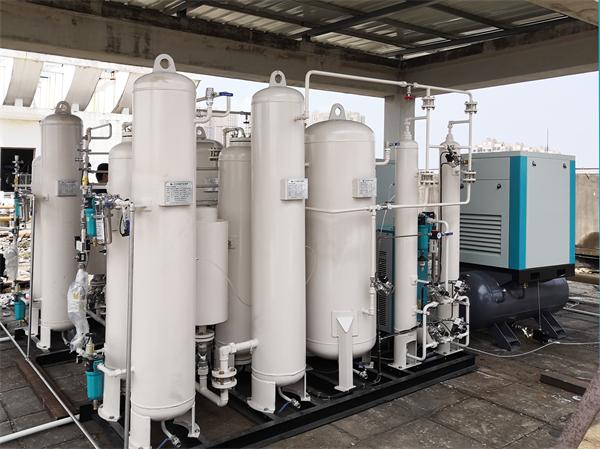

Project Case

Your Industry Needs, Our Solutions.

Related Products

Safe & Convenient

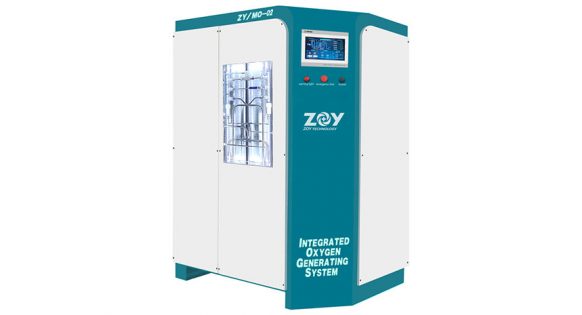

  • ZOY®Compact PSA Oxygen Generator System

    ZY-02 PSA Oxygen Generator System is a all-in-one design of Center PSA Oxygen Generator,is completely self-contained. It produces up to 70.68 standard cubic feet per hour (SCFH)/33 liters per minute (LPM) oxygen at 29-72.5 PSIG, with oxygen purity of 93±3%.

    Read More

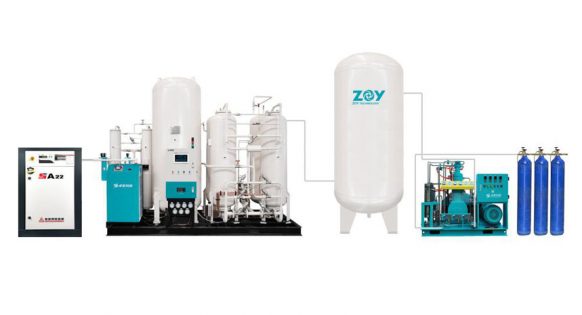

  • ZOY®Oxygen Cylinder Filling System
